8/27 CPU100度いって落ちるから掃除した

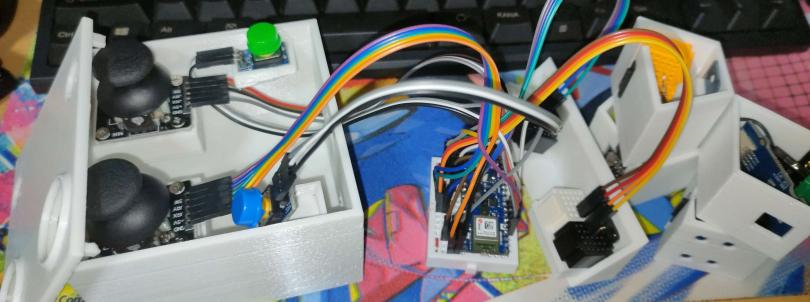

コントローラ完成
これを押し込んで
できました。採寸が大変でした。センサモジュールも一つ一つサイズが違います。
今まで印刷しては調整してきたゴミがこちらです。
プログラムを書こう
センサ4つとボタン2つとスティック2つの値をキャラクタリスティックで送ります。
クリックでコードを表示
#include <ArduinoBLE.h> #include "DFRobot_VEML7700.h" #include <BH1745NUC.h> #include <Adafruit_VL53L0X.h> // プロトタイプ宣言 String scanI2CAddresses(); void readAndSendButtonState(); void sendColorValue(); void readAndSendStickValues(); void sendLuxValue(); void sendDistanceValue(); void sendTempHumValues(); int stick1X = A0; int stick1Y = A1; int stick2X = A2; int stick2Y = A3; DFRobot_VEML7700 als; BH1745NUC bh1745nuc(BH1745NUC_DEVICE_ADDRESS_39); Adafruit_VL53L0X lox = Adafruit_VL53L0X(); BLEService sensorService("1221"); BLEStringCharacteristic luxCharacteristic("2A37", BLERead | BLENotify, 20); BLEStringCharacteristic colorCharacteristic("2A38", BLERead | BLENotify, 20); BLEStringCharacteristic buttonCharacteristic("2A39", BLERead | BLENotify, 5); BLEStringCharacteristic stickCharacteristic("2A40", BLERead | BLENotify, 20); BLEStringCharacteristic i2cAddressCharacteristic("2A41", BLERead | BLENotify, 10); BLEStringCharacteristic distanceCharacteristic("2A42", BLERead | BLENotify, 10); BLEStringCharacteristic tempHumCharacteristic("2A43", BLERead | BLENotify, 20); void setup() { Wire.begin(); Serial.begin(9600); if (!BLE.begin()) { Serial.println("starting BLE failed!"); while (1); } als.begin(); bh1745nuc.init(); // 距離センサの初期化 if (!lox.begin()) { Serial.println(F("Failed to boot VL53L0X")); while(1); } BLE.setLocalName("SensorBLE"); BLE.setAdvertisedService(sensorService); sensorService.addCharacteristic(luxCharacteristic); sensorService.addCharacteristic(colorCharacteristic); sensorService.addCharacteristic(i2cAddressCharacteristic); sensorService.addCharacteristic(buttonCharacteristic); sensorService.addCharacteristic(stickCharacteristic); sensorService.addCharacteristic(distanceCharacteristic); sensorService.addCharacteristic(tempHumCharacteristic); BLE.addService(sensorService); BLE.advertise(); Serial.println("Bluetooth device active, waiting for connections..."); } void loop() { BLEDevice central = BLE.central(); if (central) { Serial.print("Connected to central: "); Serial.println(central.address()); // Scan I2C addresses and update the new characteristic String i2cAddresses = scanI2CAddresses(); i2cAddressCharacteristic.writeValue(i2cAddresses.c_str()); while (central.connected()) { if (i2cAddresses.indexOf("16") != -1) { // if VEML7700 is connected sendLuxValue(); } if (i2cAddresses.indexOf("57") != -1) { // if BH1745NUC is connected sendColorValue(); } if (i2cAddresses.indexOf("45") != -1) { // if SHT35 is connected sendTempHumValues(); } if (i2cAddresses.indexOf("29") != -1) { // if VL53L0X is connected sendDistanceValue(); } readAndSendButtonState();//ボタン readAndSendStickValues();//アナログスティック if (i2cAddresses.indexOf("45") != -1) { // 温湿度センサが接続されている場合 delay((int)((1.0/30)*1000 - 15)); // 短いディレイ } else { delay((int)(1.0/30*1000)); // 通常のディレイ } } Serial.print("Disconnected from central: "); Serial.println(central.address()); } } // 前回のボタンの状態を保存するための変数 bool previousButtonState[4] = {false, false, false, false}; void readAndSendButtonState() { String buttonsPressed = ""; // 押されたボタンの番号を格納する文字列 for (int i = 0; i < 4; i++) { int pin = 2 + i;//D2+i bool currentState = digitalRead(pin) == HIGH; // ボタンが押された瞬間のみを検出 if (currentState && !previousButtonState[i]) { buttonsPressed += String(pin); } // 現在のボタンの状態を保存 previousButtonState[i] = currentState; } if (buttonsPressed != "") { // 1つ以上のボタンが押された場合のみ送信 buttonCharacteristic.writeValue(buttonsPressed.c_str()); } } void sendColorValue() { unsigned short rgbc[4]; if (bh1745nuc.get_val(rgbc) == 0) { float maxVal = max(max(rgbc[0], rgbc[1]), rgbc[2]); float scale = 1.0 / maxVal; // RGB値を0~1の範囲にスケーリング float R = rgbc[0] * scale; float G = rgbc[1] * scale; float B = rgbc[2] * scale; // 小数点以下3桁にフォーマット char colorStr[50]; snprintf(colorStr, sizeof(colorStr), "%.3f,%.3f,%.3f", R, G, B); Serial.println(colorStr); colorCharacteristic.writeValue(colorStr); } } void readAndSendStickValues() { int stick1X = analogRead(A0); int stick1Y = analogRead(A1); int stick2X = analogRead(A2); int stick2Y = analogRead(A3); char stickValues[20]; snprintf(stickValues, sizeof(stickValues), "%d,%d,%d,%d", stick1X, stick1Y, stick2X, stick2Y); stickCharacteristic.writeValue(stickValues); } void sendLuxValue() { float lux; als.getALSLux(lux); String luxStr = "VEML7700:" + String(lux) + " lx"; luxCharacteristic.writeValue(luxStr.c_str()); } String scanI2CAddresses() { String detectedAddresses = ""; for (int address = 1; address < 127; address++) { Wire.beginTransmission(address); byte error = Wire.endTransmission(); if (error == 0) { detectedAddresses += String(address, HEX) + ","; } } return detectedAddresses; } void sendDistanceValue() { VL53L0X_RangingMeasurementData_t measure; lox.rangingTest(&measure, false); if (measure.RangeStatus != 4) { distanceCharacteristic.writeValue(String(measure.RangeMilliMeter).c_str()); } else { distanceCharacteristic.writeValue("Out of range"); } } void sendTempHumValues() { // Send measure command Wire.beginTransmission(0x45); Wire.write(0x24); Wire.write(0x0B); Wire.endTransmission(); delay(15); // Wait for measurement to complete (max 15ms) // Request 6 bytes of data Wire.requestFrom(0x45, 6); // Read data byte data[6]; for (int i = 0; i < 6; i++) { data[i] = Wire.read(); } // Convert to actual temperature and humidity unsigned int rawTemp = (data[0] << 8) | data[1]; unsigned int rawHum = (data[3] << 8) | data[4]; float temp = -45 + 175 * ((float)rawTemp / 65535); float hum = 100 * ((float)rawHum / 65535); String tempHumStr = String(temp, 2) + "°C," + String(hum, 2) + "%"; tempHumCharacteristic.writeValue(tempHumStr.c_str()); }
これをUEで取得してキャラクターを動かしてギミック作ってUIとエフェクトとサウンド頑張って動画撮って編集して終わりです。がんばろう
